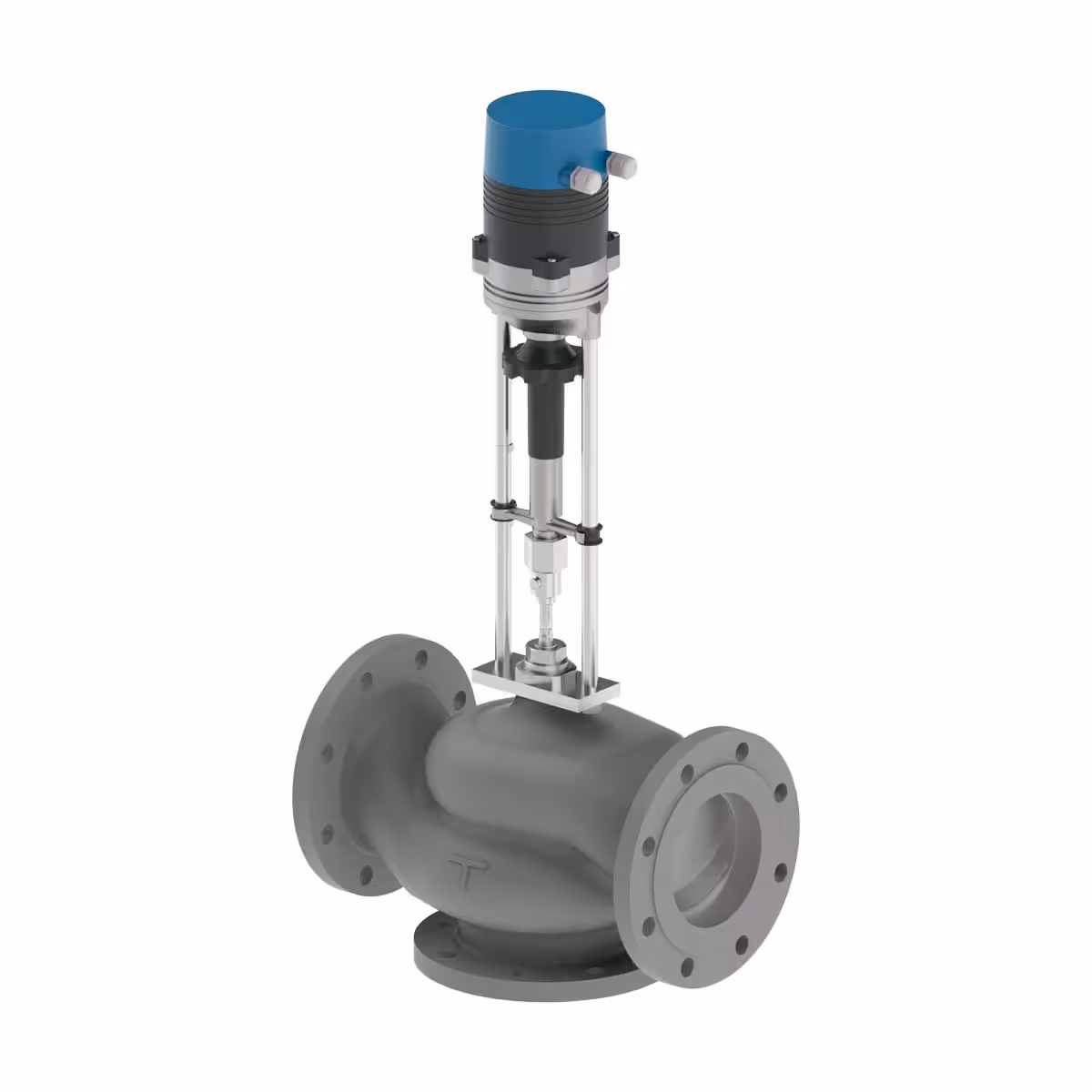

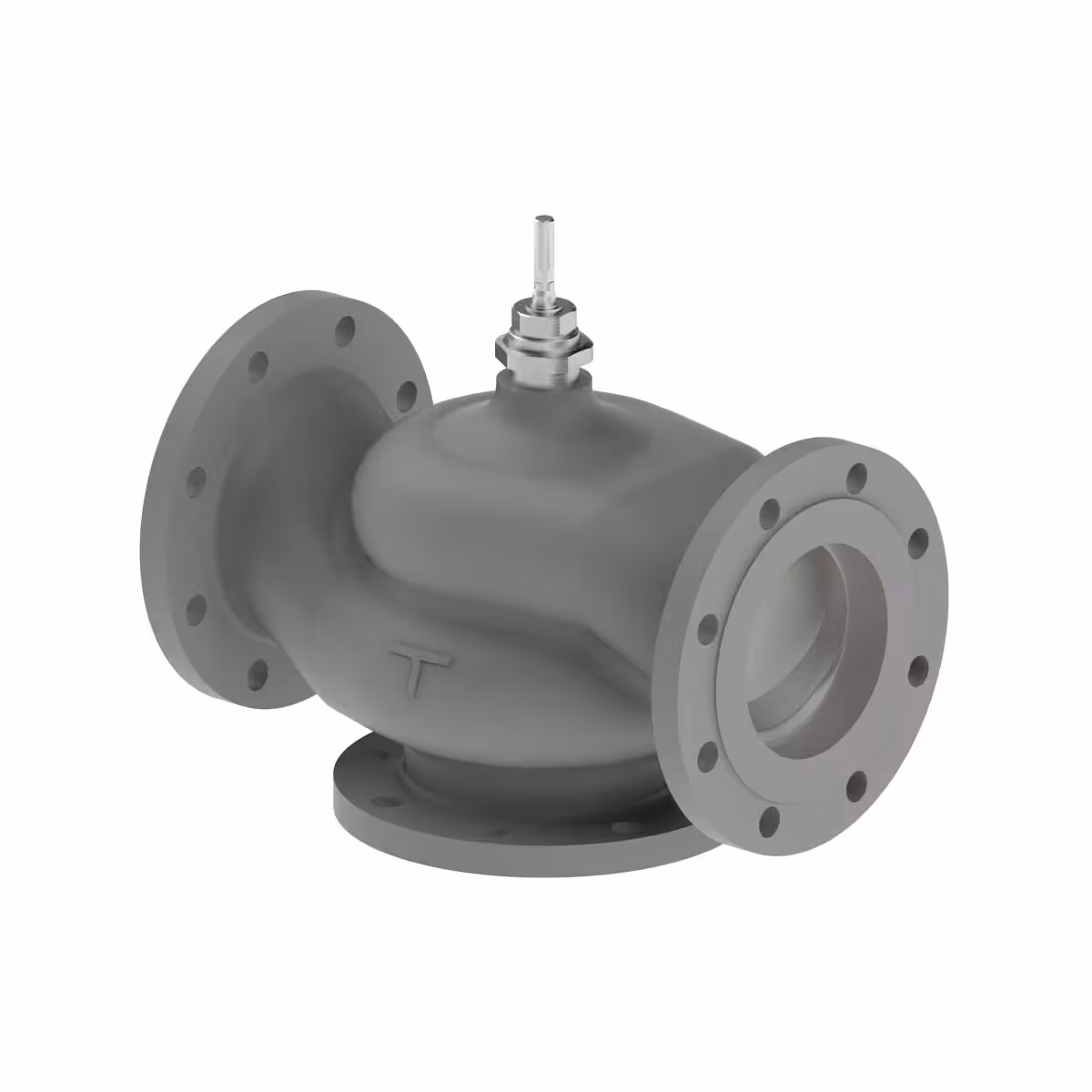

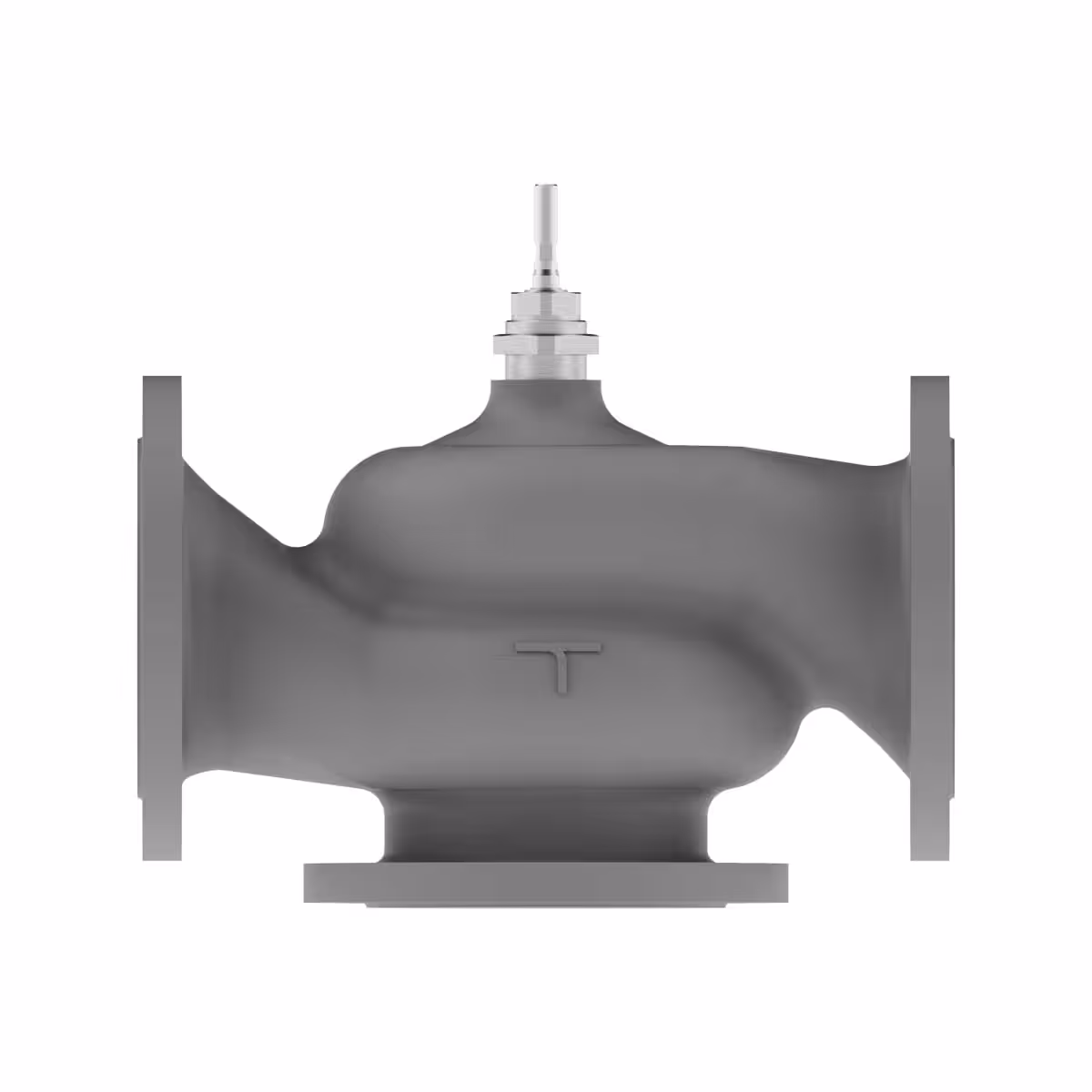

RH3F
3-port control valves PN16
Product features
DN15 – DN200
Kvs: 31,5 – 500 m³/h
Medium: water 0 – 150 °C 1)
A > AB: equiprocentual
Cast iron GG-25 (EN-JL1040)
Flanged connection EN1092-2 type 21
Tight sealing EN1349, VI G1s
DN15 – DN200
Kvs: 31,5 – 500 m³/h
Medium: water 0 – 150 °C 1)
A > AB: equiprocentual
Cast iron GG-25 (EN-JL1040)
Flanged connection EN1092-2 type 21
Tight sealing EN1349, VI G1s
| Type | DN 1) [mm] | Kvs [m³/h] | Max. stroke [mm] |
|---|---|---|---|
| RH3F050A | 50 | 40 | 14 |
| RH3F050B | 50 | 31,5 | 14 |
| RH3F065A.xx | 65 | 63 | 20 or 30 2) |
| RH3F065B.xx | 65 | 50 | 20 or 30 2) |
| RH3F080A | 80 | 100 | 30 |
| RH3F080B | 80 | 80 | 30 |
| RH3F100A | 100 | 160 | 30 |
| RH3F100B | 100 | 125 | 30 |
| RH3F125A | 125 | 250 | 50 |
| RH3F150A | 150 | 315 | 50 |
| RH3F200A | 200 | 500 | 60 |
1)With stem heater for medium temperatures down to -10 °C
2)Max. stroke (xx) to specify when ordering
| Type | Document | File type | Size | |
|---|---|---|---|---|
| Datasheet | RH2F / RH3F - 2- and 3-port control valves PN16 - EN | 2.0 MB | View | |
| Datasheet | RH2F / RH3F - 2- en 3-weg regelafsluiters PN16 - NL | 1.4 MB | View | |
| Datasheet | RH2F / RH3F - Vannes de régulation à 2 voies et 3 voies PN16 - FR | 1.4 MB | View | |
| Catalog | Catalog 2026 | View |
